24KV 30:5A Current transformer

Short Description:

Product Detail

Product Tags

Current Transformer 2_0010

Description:LDZ-17.5 30:5A

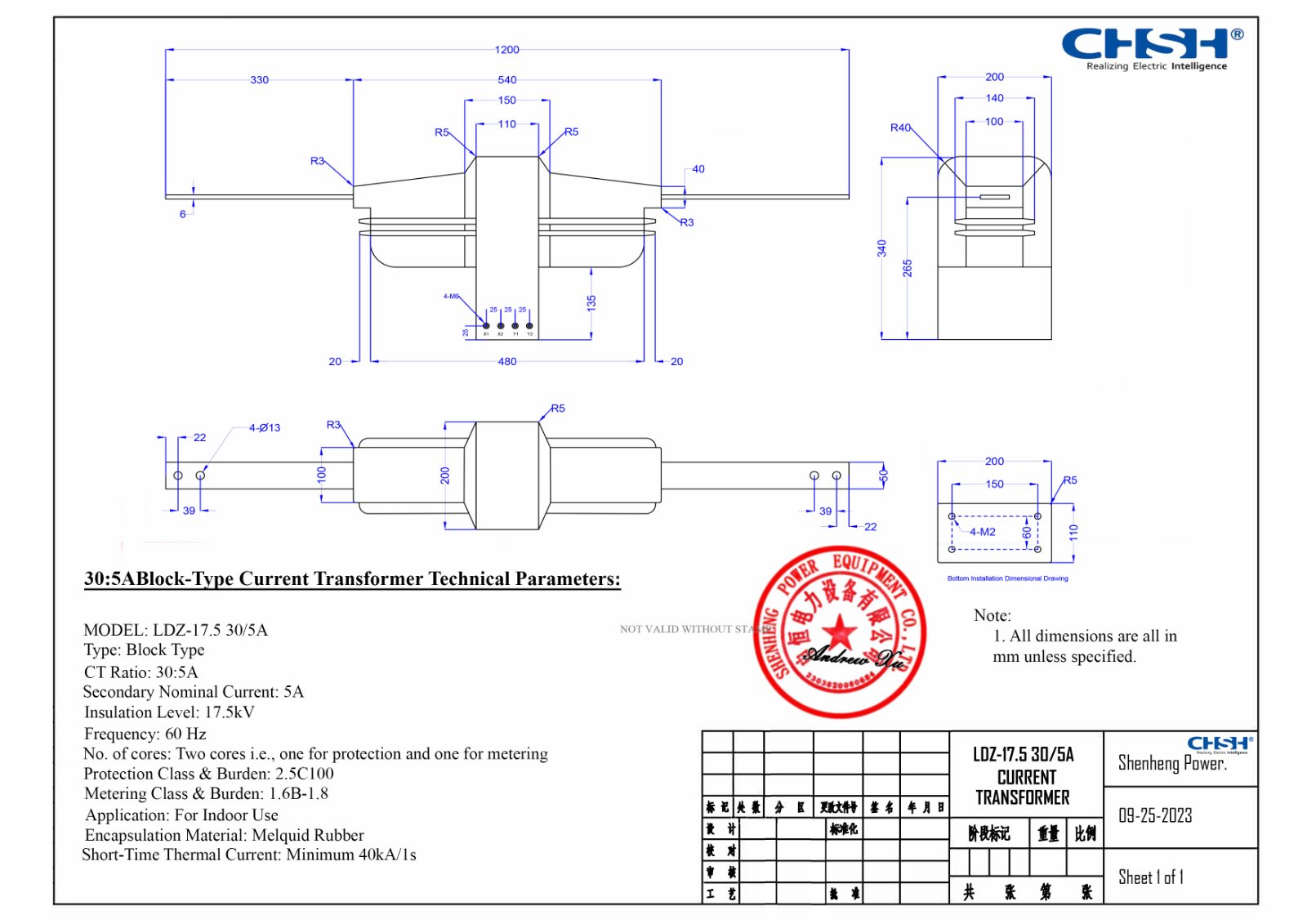

Description:Product Outline Drawing Description

MODEL: LDZ-17.5 30/5A

30/5A Current transformer Specs
Type: Block Type
CT Ratio:30: 5 A
Secondary Nominal Current: 5A
Insulation Level: 17.5kV
Frequency: 60 Hz
No. of Cores: Two cores i.e., one for protection and one for metering
Protection Class& Burden: 2.5C100
Metering Class& Burden:1.6B-1.8
Application: For Indoor Use
Encapsulation Material: Melquid Rubber
Short-Time Thermal Current: Minimum 40kA/1s

Materials available in : Cast-resin and epoxy resin.

Experience in production and manufacturing since 2008
