In the complex landscape of electrical engineering, understanding component symbols is crucial for interpreting schematics and ensuring system safety. Here’s a breakdown of 10 fundamental devices, from their graphical representations to their vital roles in power distribution and control.

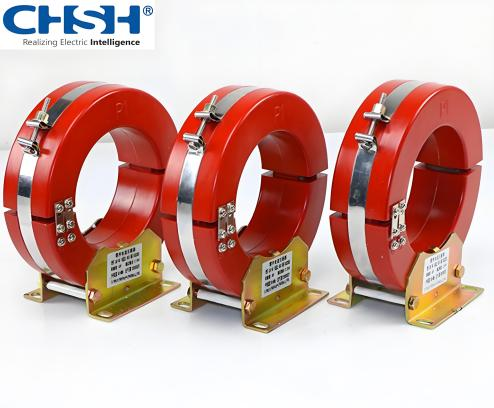

1. Double-Core Double-Winding Current Transformer
Symbol: Two interlinked coils with a vertical bar between them, denoting two iron cores (IEC 06-04-08).
Function: Converts high primary currents to lower secondary currents for measurement or protection. The dual cores allow independent current sensing for redundancy in relays or meters.

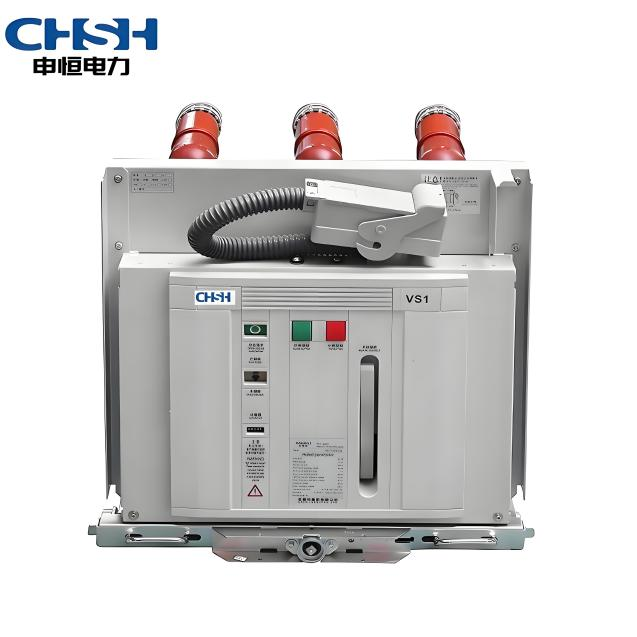

2. Circuit Breaker
Symbol: A switch-like figure with arcs or dots beside the contacts (IEC 06-06-01).
Function: Automatically interrupts current during overloads or short circuits. Unlike fuses, it can be reset, making it reusable in distribution panels and substations.

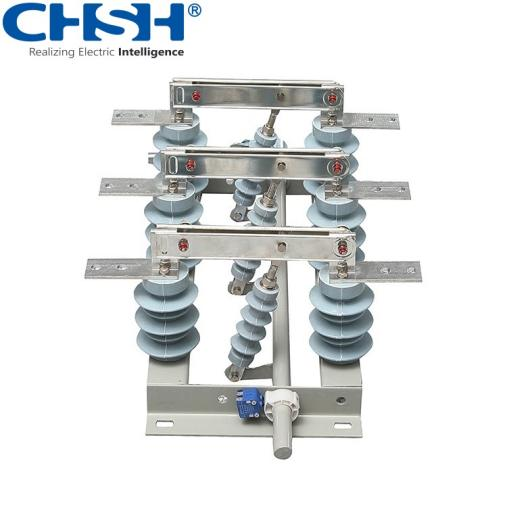

3. Isolator (Disconnect Switch)
Symbol: A simple broken line with a horizontal bar, indicating a manual switch (IEC 06-02-01 variant).
Function: Physically separates an electrical circuit for maintenance, ensuring no current flows when open. It cannot interrupt load current and must be operated after circuit breakers.
4. Load Break Switch
Symbol: Similar to an isolator but with additional contact arcs (IEC 06-02-06).
Function: Switches normal load currents but cannot handle fault currents. Used in distribution networks to isolate sections without full breaker complexity.

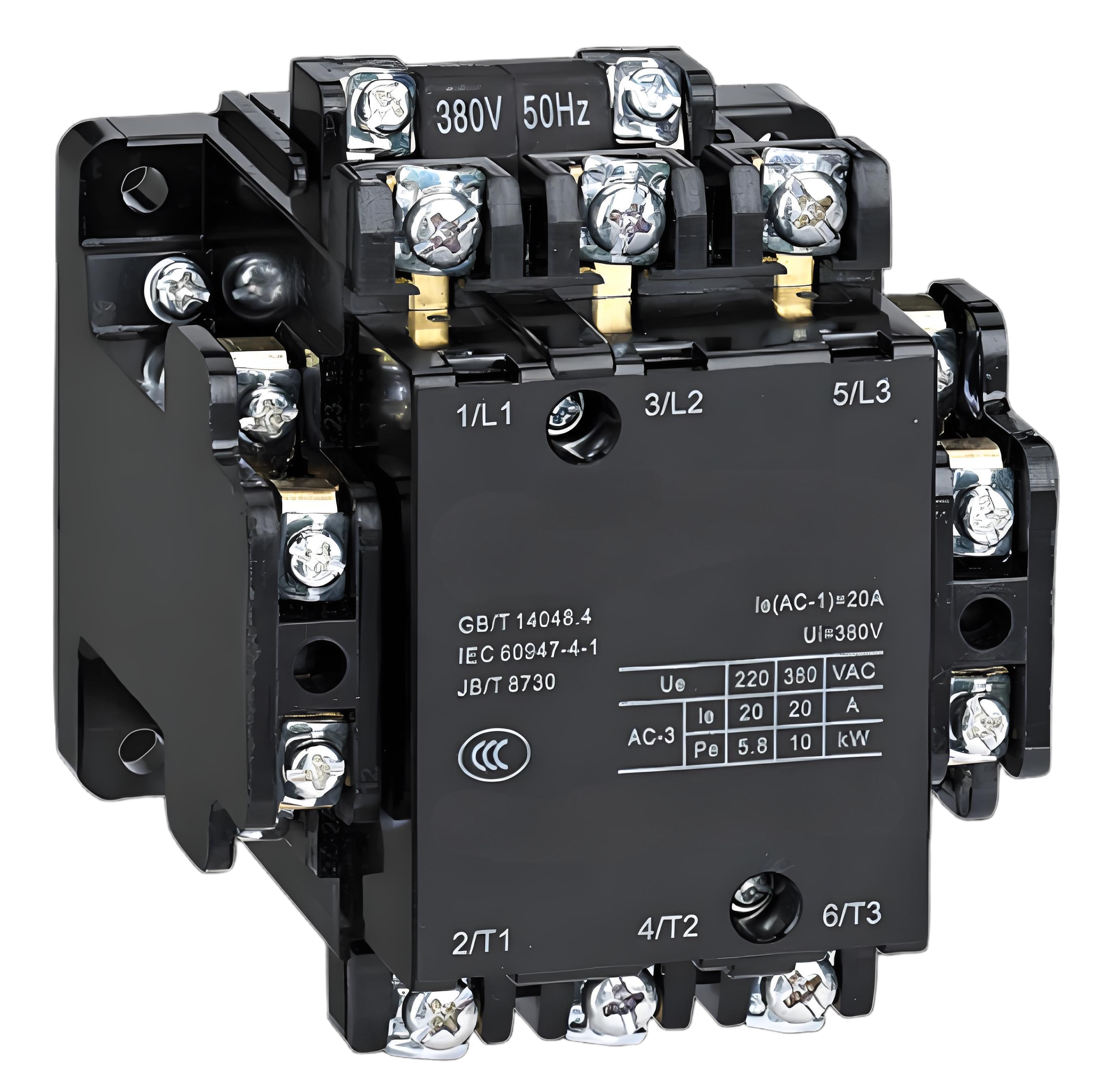

5. Contactor
Symbol: An electromagnet coil with parallel lines representing contacts (IEC 06-02-12).
Function: Controls electric motors or large loads via an electromagnet. Activated by a low-power signal, it switches high-current circuits, essential in industrial automation.

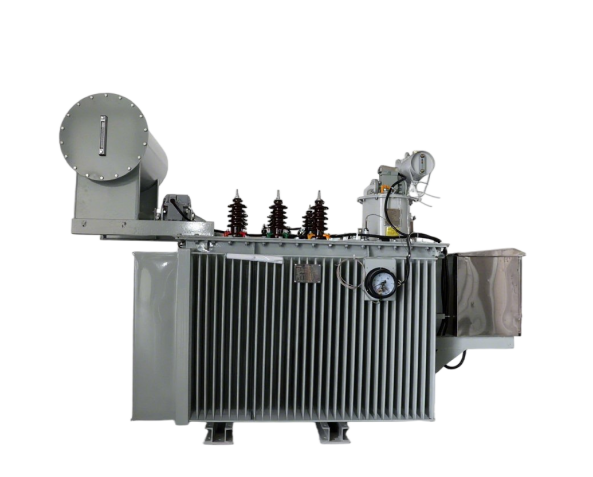

6. Three-Winding Transformer
Symbol: Three interlinked coils, often with a Y or Δ configuration notation (IEC 06-04-02).
Function: Transfers power between three electrical circuits, enabling voltage transformation across multiple grids. Common in substations for voltage matching between transmission and distribution.

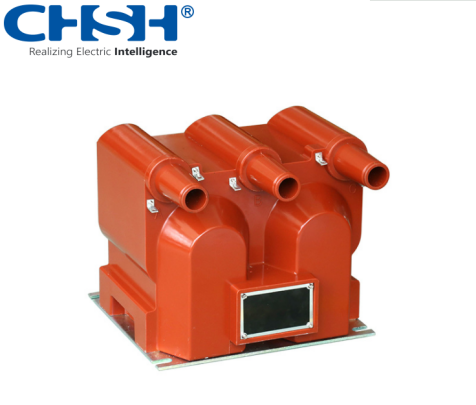

7. Voltage Transformer (Potential Transformer)
Symbol: A single coil pair with a zigzag or parallel lines (IEC 06-04-05).
Function: Steps down high voltages for measurement by meters or relays. Ensures safe voltage levels for instrumentation in power systems.

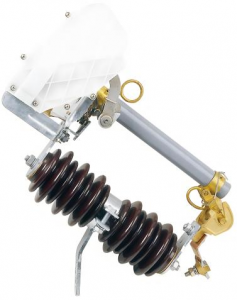

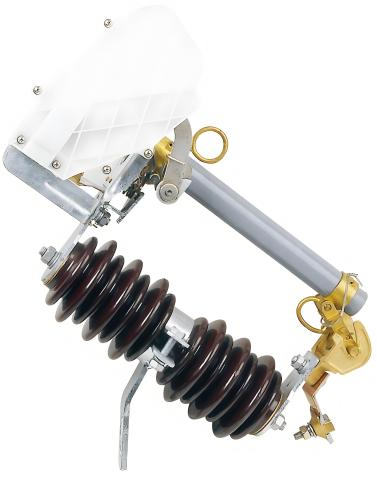

8. Fuse
Symbol: A zigzag line or a rectangle with a vertical bar (IEC 06-06-02).
Function: Sacrificial device that melts when overcurrent flows, breaking the circuit. Cheaper than circuit breakers but requires replacement after activation.

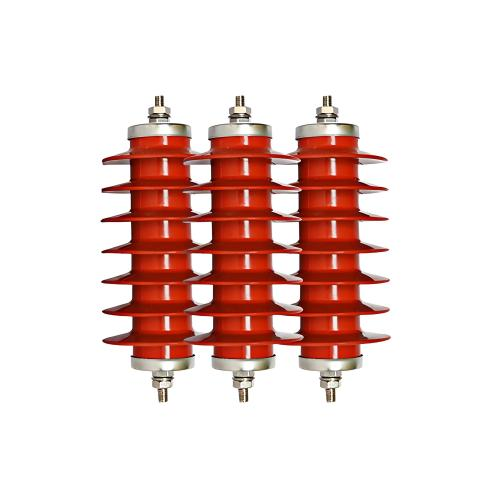

9. Lightning Arrester (Surge Protector)
Symbol: A pointed triangle or zigzag line with an arrow (IEC 06-09-08).
Function: Protects equipment from voltage spikes (e.g., lightning). Conducts excess voltage to ground, preventing damage to sensitive electronics.

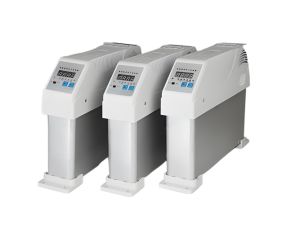

10. Capacitor
Symbol: Two parallel lines (fixed capacitor) or a variable zigzag line (IEC 06-13-01).
Function: Stores electrical energy in an electric field. Used for power factor correction, filtering, or energy storage in circuits.
The Language of Symbols: A Safety Imperative
These symbols, standardized by bodies like the IEC, form a universal code. For example, the circuit breaker’s arc symbol instantly signals its fault-interrupting capability, while the capacitor’s parallel lines denote its energy-storing nature. Misinterpretation risks catastrophic failures—hence why engineers worldwide rely on this visual grammar.
As smart grids evolve, symbols may adapt to digital interfaces, but their core purpose remains: translating complex systems into understandable blueprints. For anyone delving into electrical design, mastering these symbols is the first step toward safe, efficient engineering.
